LLC-MUA210ST
Low Density PTFE Core
Low Loss Microwave Coaxial Cable
This cable is for replacement of Micro-Coax UFA210B and of Low Loss PTFE Cables by other Manufacturers
or Expanded PTFE Tape Wrapping Core Cables like LL and LLS Series Cable of Habour Industries.
This cable can be used as the Best TEST Cable by High Flexures
based on 19 Stranded Center Conductor.

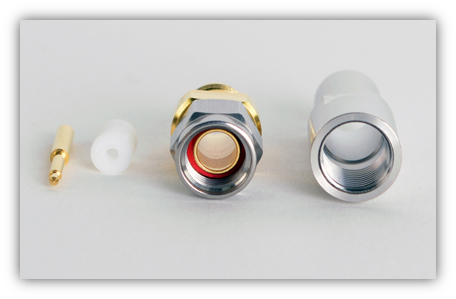

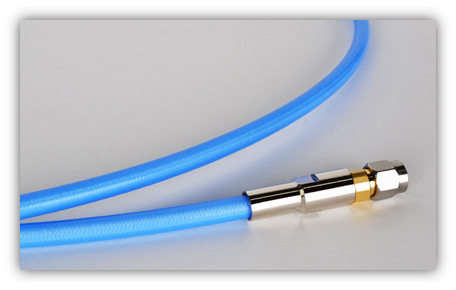

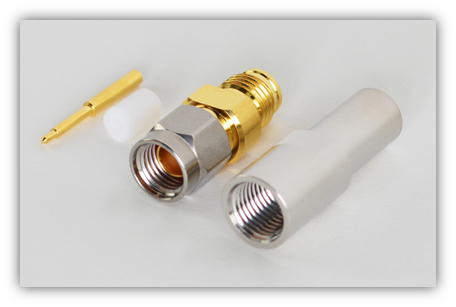

Also, all the connectors for Micro-Coax UFA210B can be used for this cable.
|
CENTER CONDUCTOR |
|
The center conductor is one of Solid Silver Plated Copper Wire or Stranded Silver Plated Copper Wire in accordance with ASTM B-298. The solid center conductor has a less RF resistance, a lower attenuation, and is more amplitude stable with flexure. The stranded center conductor is excellent in flexibility and is more phase stable with flexure. |
|
|
|
DIELECTRIC |
|
The Dielectric is composed by Low density Extrusion PTFE with a lower dielectric constant compared with Solid PTFE. Almost of transmission losses are determined by the dielectric material and structure. In addition, the dielectric material and structure determines the velocity of propagation, the using temperature range, the power rating, the phase and amplitude stability, and a flexibility of cable. The LLC-M series cables are constructed by Low Density Extrusion PTFE having low thermal coefficient of expansion, also based on stable and equal pore distribution. |
|
|
|
INNER SHIELD |
|
The Inner Shield is composed by Silver Plated Copper Strip wrapped helically between layers. This shield structure provide the outstanding flexibility with providing 100 % coverage rate. The uniform impedance and ideal contact between individual layers of the shield are achieved by unique structure of Silver Plated Copper Strip wrapping. |
|
|
|
OUTER SHIELD |
|
The Silver Plated Copper Wire in accordance of ASTM B-298 is braded tightly over the inner shield. The braiding structure provide the tightness of inner shield and also present the additional shield effectiveness. |
|
|
|
OURTER JACKET |
|
The FEP ( Fluorinated Ethylene Propylene ) as the material of outer jacket have the strong resistance to Temperature and Chemical. |
|
|
Download for Specification Sheet
LLC-MUA210ST Low Loss Microwave Coaxial Cable
|

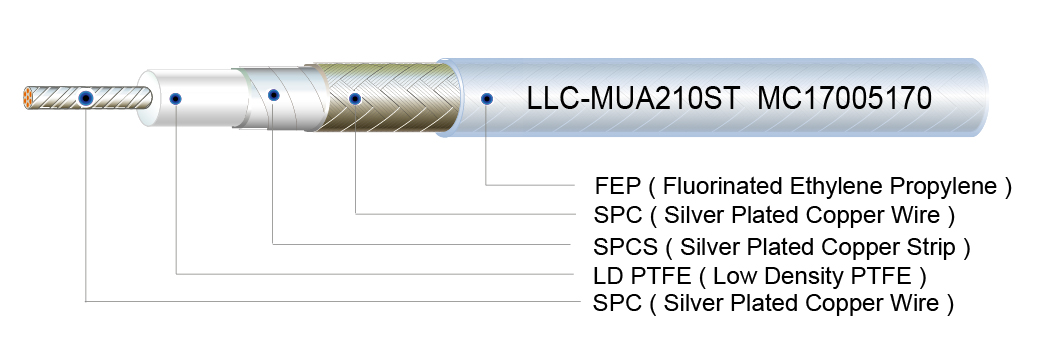

Construction |
|
Item |
Material |
Diameter |
Remark |
|
Center Conductor |
SPC |
1.44 mm ( 0.057 inch ) |
19 Stranded Wire |
|
Dielectric |
LD PTFE |
4.06 mm ( 0.160 inch ) |
Low Density PTFE |
|
Inner Shield |
SPCS |
4.22 mm ( 0.166 inch ) |
Silver Plated Copper Strip Taping |
|
Outer Shield |
SPC |
4.72 mm ( 0.186 inch ) |
Round Silver Plated Copper Wire Braiding |
|
Jacket |
FEP |
5.33 mm ( 0.210 inch ) |
Sky Blue |
|
Electrical & Mechanical Data |
|
Impedance |
50Ω ±1 |
|
|
Frequency Range |
DC-18 GHz ( Max. ) |
|
|
Velocity of Propagation |
80% |
|
|
Capacitance |
26.2pf/ft ( 86.0pf/m ) |
|
|
Operating Temperature |
- 55℃ ~ 165℃ |
|
|
Shield Effectiveness |
> - 100 dB ( dB @ 1 GHz ) |
|
|
Power Handling Watts |
248 (CW) @ 10 GHz |
|
|
Flexures |
100,000 |
|
|
Min. Bending Radius |
0.38inch ( 9.65mm ) |
|
|
|
|
|
|
Attenuation |
|
|
Frequency |
Max. Attenuation |
||
|
|
(GHz) |
(dB/ft ) |
|
(dB/m) |
|
|
1.0 |
0.11 |
|
0.36 |
|
|
10.0 |
0.36 |
|
1.18 |
|
|
18.0 |
0.50 |
|
1.64 |
|
26.5 |
0.62 |
2.03 |
||
