LLC-MUA210ST Low Loss Microwave Coaxial Cable
|

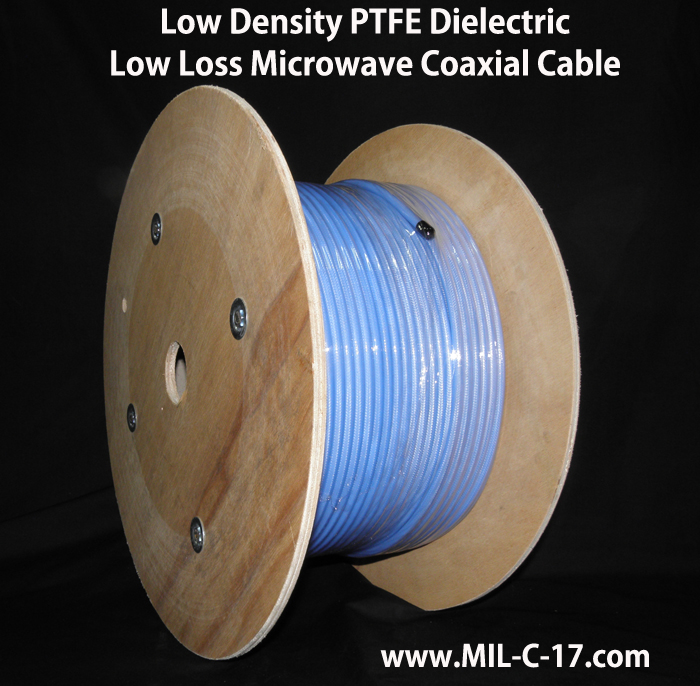

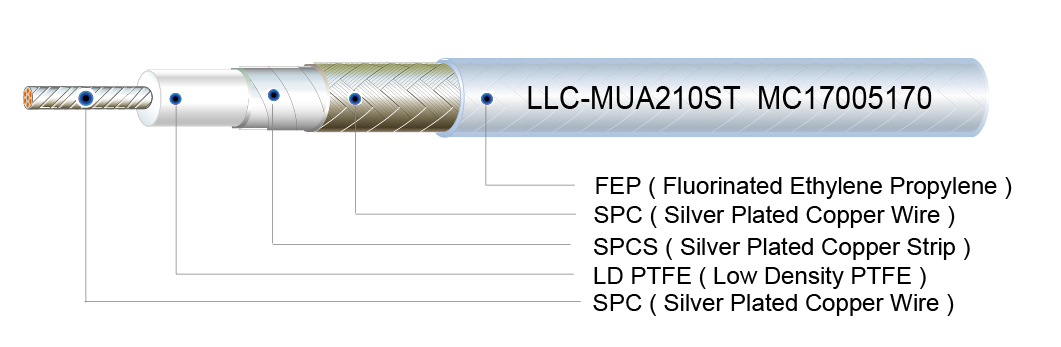

Construction |
|
Item |
Material |
Diameter |
Remark |
|
Center Conductor |
SPC |
1.44 mm ( 0.057 inch ) |
19 Stranded Wire |
|
Dielectric |
LD PTFE |
4.06 mm ( 0.160 inch ) |
Low Density Low Density PTFE |
|
Inner Shield |
SPCS |
4.22 mm ( 0.166 inch ) |
Silver Plated Copper Strip Taping |
|
Outer Shield |
SPC |
4.72 mm ( 0.186 inch ) |
Round Silver Plated Copper Wire Braiding |
|
Jacket |
FEP |
5.33 mm ( 0.210 inch ) |
Transparent Blue |
|
Electrical & Mechanical Data |
|
Impedance |
50Ω ±1 |
|
|
Frequency Range |
DC-18 GHz ( MaDC-18 GHz ( Max. ) |
|
|
Velocity of Propagation |
80% |
|
|
Capacitance |
26.2pf/ft ( 86.26.2pf/ft ( 86.0pf/m ) |
|
|
Operating Temperature |
- 55℃ ~ 165℃ |
|
|
Shield Effectiveness |
> - 100 dB (> - 100 dB ( dB @ 1 GHz ) |
|
|
Power Handling Watts |
248 (CW) @ 10 G248 (CW) @ 10 GHz |
|
|
Flexures |
100,000 |
|
|
Min. Bending Radius |
0.38inch ( 9.650.38inch ( 9.65mm ) |
|
|
|
|
|
|
Attenuation |
|
|
Frequency |
Max. Attenuation |
||
|
|
(GHz) (GHz) |
(dB/ft ) |
|
(dB/m) |
|
|
1.0 |
0.11 |
|
0.36 |
|
|
10.0 |
0.36 |
|
1.18 |
|
|
18.0 |
0.50 |
|
1.64 |
