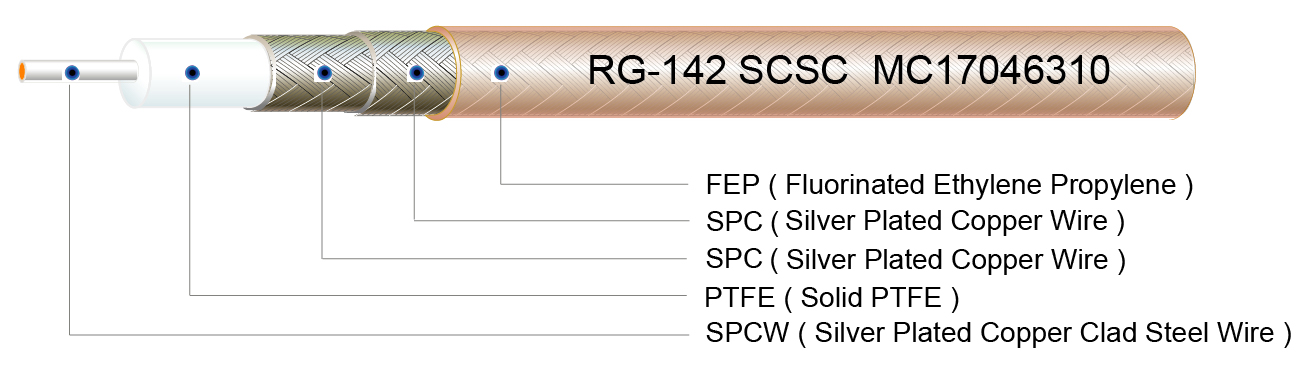

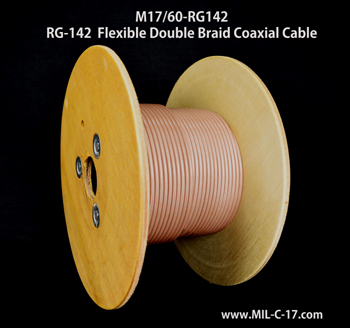

     Construction

Item

Material

Diameter

Remark

Center Conductor

SPCW

0.94 mm  ( 0.037 inch )

Solid

Dielectric

PTFE

2.95 mm  ( 0.116 inch )

Solid

Inner Shield

SPC

3.60 mm  ( 0.142 inch )

Braid

Outer Shield

SPC

4.25 mm  ( 0.167 inch )

Braid

Jacket

FEP

4.95 mm  ( 0.195 inch )

Light Brown

     Electrical & Mechanical Data

Characteristic impedance

50 ¥Ø

Operating frequency

6 GHz ( Max. )

Velocity of propagation

69.5 %

Signal delay

4.75 ns/m

Capacitance

95 pF/m

Operating temperature

- 55¡É ~  200¡É

Shield effectiveness

> 85 dB ( up to 6 GHz )

Working voltage

2,500 Vrms ( Max. )

Weight

64.0 kg / km

Min. bending radius

30 mm ( single )

50 mm ( multiple )

  Attenuation

  Frequency

  Max. Attenuation

   (GHz)

(dB/m)

(dB/ft)

   0.1

0.13

0.040

   0.5

0.31

0.094

   1.0

0.45

0.137

   3.0

0.87

0.265

   5.0

1.20

0.366

   6.0

1.36

0.415
