EXPANDED PTFE TAPE WRAPPING CORE CABLE

UNDERSTANDING OF EXPANDED PTFE TAPE WRAPPING CORE CABLE

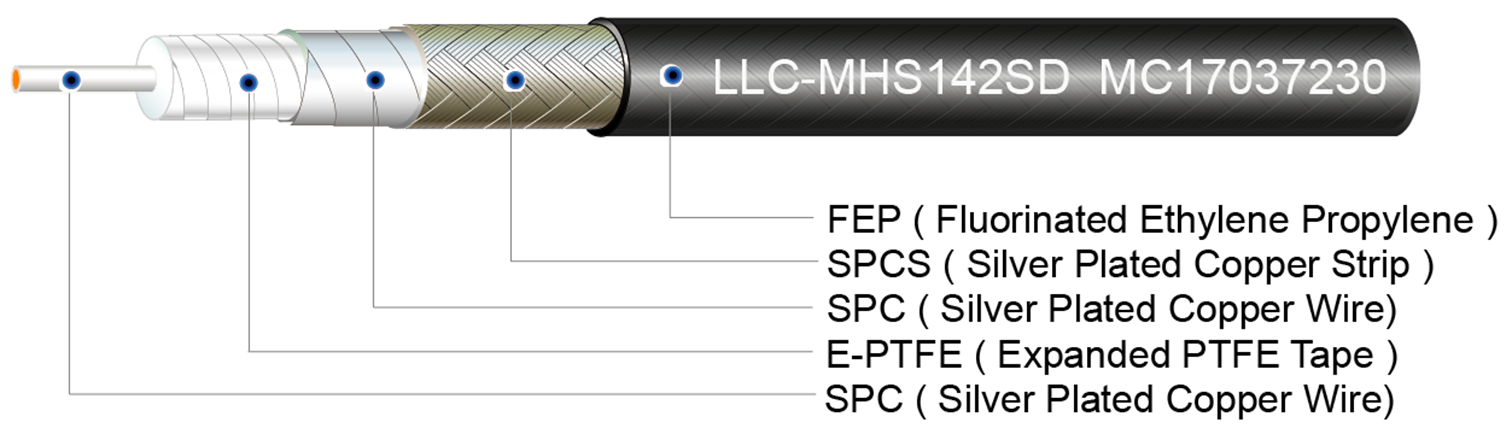

The silver plated spiral strip inner shield and round silver plated copper wire outer braid configuration and high velocity expanded PTFE Tape wrapping dielectrics of LLC-MHS constructions present an attenuation level lower than Solid PTFE core cable. The unique shielding structure also present the manufacture of small diameter, light weight cables with low attenuation and shielding effectiveness levels exceeding -110 dB.

The higher velocity PTFE tape wrapping dielectrics show a very low coefficient of expansion enabling the transmission of high power levels. Phase versus temperature performance has been optimized.

Physical Structure	LLC-MHS142SD		LLC-MHC142ST		LLC-MHS205SD		LLC-MHS290SD		LLC-MHS314SD
Replacement for	LLS142 of Harbour Industries		LLS142STR of Harbour Industries		LLS205 of Harbour Industries		LLS290 of Harbour Industries		CXN3562 of GORE
Center Conductor	Solid		Stranded		Solid		Solid		Solid
Center Conductor	1.30 mm	0.051 inch	1.45 mm	0.057 inch	1.73 mm	0.068 inch	2.26 mm	0.089 inch	2.34 mm	0.092 inch
Dielectric	3.63 mm	0.143 inch	3.81 mm	0.150 inch	3.81 mm	0.150 inch	6.22 mm	0.245 inch	6.30 mm	0.248 inch
Inner Shield	3.81 mm	0.150 inch	3.99 mm	0.157 inch	4.06 mm	0.160 inch	6.35 mm	0.250 inch	6.78 mm	0.267 inch
Outer Shield	4.22 mm	0.166 inch	4.42 mm	0.174 inch	4.47 mm	0.176 inch	6.71 mm	0.264 inch	7.19 mm	0.283 inch
Outer Diameter	4.95 mm	0.195 inch	4.95 mm	0.195 inch	5.21 mm	0.205 inch	7.37 mm	0.290 inch	7.87 mm	0.310 inch
Electrical Data	LLC-MHS142SD		LLS-MHC142ST		LLC-MHS205SD		LLC-MHS290SD		LLC-MHS314SD
Weight ( lbs./MFT)	41 Lbs/MFT		35 Lbs/MFT		39 Lbs/MFT		66 Lbs/MFT		68 Lbs/MFT
Operating temperature range ( ° C )	-55 +200℃		-55 +200℃		-55 +200℃		-55 +200℃		-55 +200℃
Min. recommended bend radius	25.40 mm	1.00 inch	30.48 mm	1.20 inch	25.40 mm	1.00 inch	38.10 mm	1.50 inch	38.10 mm	1.50 inch
Impedance ( Ohms )	50 Ω		50 Ω		50 Ω		50 Ω		50 Ω
Capacitance ( pF/ft. )	82.02 pF/m	25.00 pF/ft	82.02 pF/m	25.00 pF/ft	82.02 pF/m	25.00 pF/ft	82.02 pF/m	25.00 pF/ft	82.02 pF/m	25.00 pF/ft
Velocity of Propagation ( % )	80 %		80 %		80 %		80 %		80 %
Shielding Effectiveness	> - 110dB		> - 110dB		> - 110dB		> - 110dB		> - 110dB
