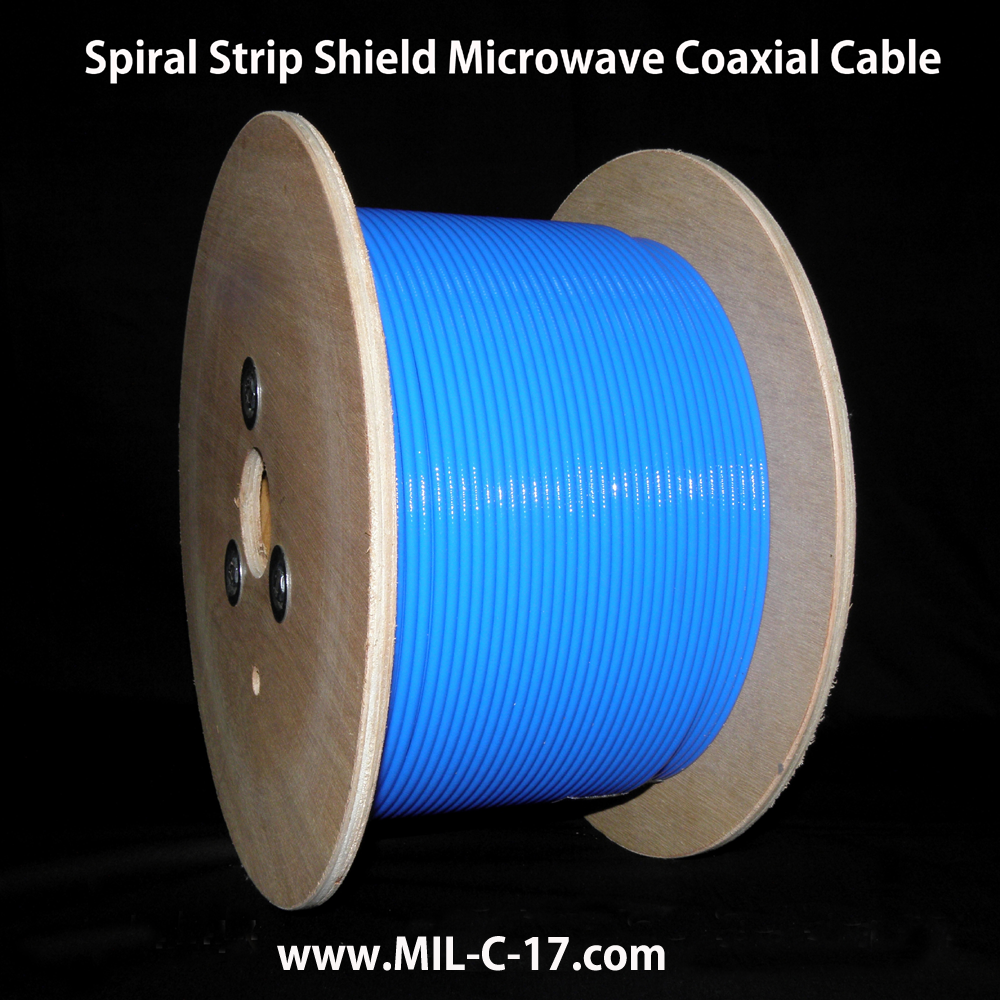

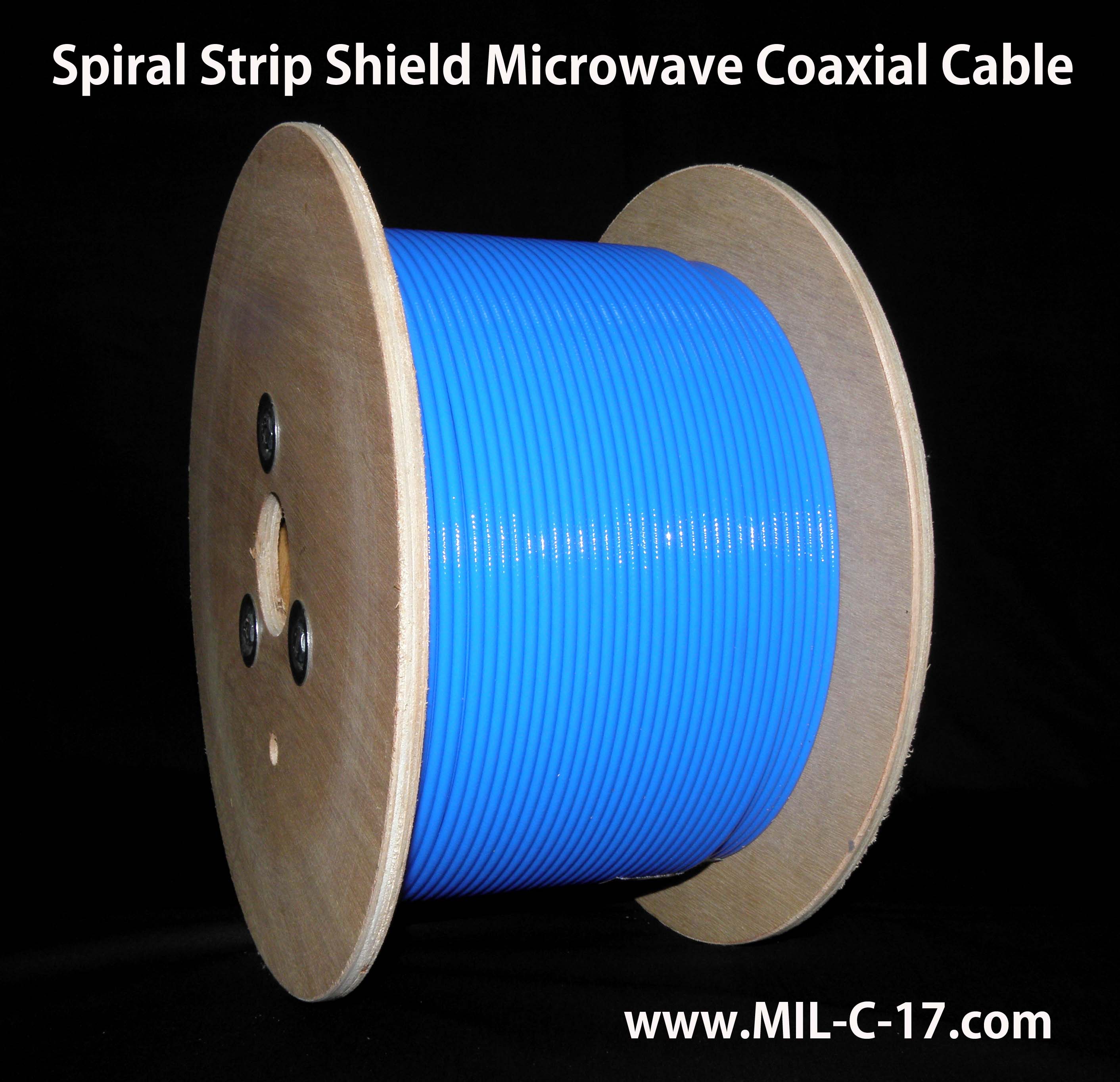

SPIRAL STRIP SHIELD MICROWAVE CABLE

UNDERSTANDING OF SPIRAL STRIP SHIELD COAXIAL CABLE

The Spiral Strip Shield coaxial cables are flexible alternatives to semi-rigid coax, and the unique shielding configuration offers a cost effective, low attenuation option. The use of strip/round braid composite shields results in low transfer impedance levels. The 50 ohm constructions exhibit the same attenuation characteristics as the M17/129-RG401, M17/130-RG402 and M17/133-RG405 cables. All The Spiral Strip Shield coaxial cables have VSWR characteristics that meet or exceed similar size flexible constructions. RG-402SS and RG-405SS have been designed with diameters over the outer braids of .141” and .086” respectively, so standard SMA connectors may be used.

An overall FEP jacket is resistant to oil and chemicals. The cable is either unmarked or surface printed eliminating a marker tape that may cause problems in termination. Without the marker tape, an improved level of adhesion exists between the braided core and the jacket that allows ease of termination with short length assemblies.

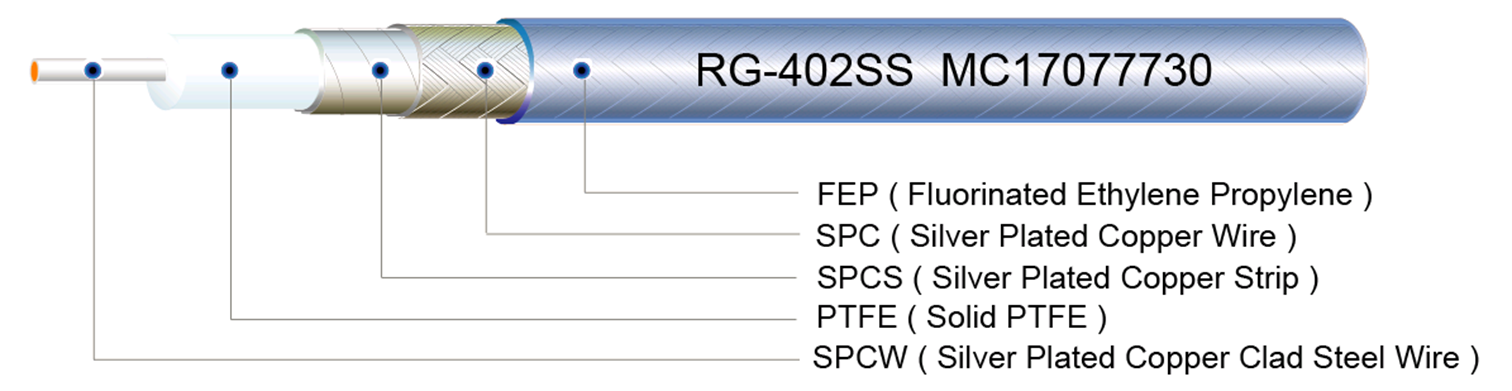

Physical Structure		RG-405SS		RG-405STUF		RG-402SS		RG-402STUF		RG-401SS
Replacement for		SS405 of Harbour Industries MULTIFLEX 86 Tflex-405 Multibend 405		SFL405-105Flex of Harbour Industries		SS402 of Harbour Industries MULTIFLEX 141 Tflex-402 Multibend 402		SFL402-105Flex of Harbour Industries		SS401 of Harbour Industries Tflex-401 Multibend 401
Center Conductor	Materia	SCCS		SPCW		SCCS		SPC		SPC
	Structure	Solid		Stranded ( 7/33 )		Solid		Stranded ( 7/28 )		Solid
	Diameter	0.51 mm	0.0201 inch	0.53 mm	0.0210 inch	0.92 mm	0.036 inch	0.96 mm	0.0376 inch	1.63 mm	0.0640 inch
Dielectric	Solid PTFE	1.63 mm	0.064 inch	1.60 mm	0.063 inch	2.97 mm	0.117 inch	2.97 mm	2.97 mm	5.31 mm	0.209 inch
Inner shield	Flat Silver Plated Copper Strip	1.80 mm	0.071 inch	1.80 mm	0.071 inch	3.25 mm	0.128 inch	3.15 mm	0.124 inch	5.75 mm	0.226 inch
Outer shield	Silver Plated Copper Wire	2.18 mm	0.086 inch	2.16 mm	0.085 inch	3.58 mm	0.141 inch	3.51 mm	0.138 inch	6.40 mm	0.252 inch
Jacket	FEP	2.64 mm	0.104 inch	2.92 mm	0.115 inch	4.14 mm	0.163 inch	4.57 mm	0.180 inch	6.99 mm	0.275 inch
Weight		19.1 Kg/Km	5.8 Kg/1000ft	19.1 Kg/Km	5.8 Kg/1000ft	43.6 Kg/Km	13.3 Kg/1000ft	42.7 Kg/Km	13.0 Kg/1000ft	160.0 Kg/Km	48.8 Kg/1000ft
Temperature Range (℃)		-55 ~ +200℃		-55 ~ +200℃		-55 ~ +200℃		-55 ~ +200℃		-55 ~ +200℃
Minimum Bend Radius		12.7 mm	0.5 inch	15.2 mm	0.6 inch	20.3 mm	0.8 inch	22.9 mm	0.9 inch	35.6 mm	1.4 inch
Electrical Data		RG-405SS		RG-405STUF		RG-402SS		RG-402STUF		RG-401SS
Impedance (Ohms)		50 Ω		50 Ω		50 Ω		50 Ω		50 Ω
Capacitance (pF/ft.)		96.5 pF/M	29.4 pF/ft	96.5 pF/M	29.4 pF/ft	96.5 pF/M	29.4 pF/ft	96.5 pF/M	29.4 pF/ft	96.5 pF/M	29.4 pF/ft
Velocity of Propagation ( % )		70 %		70 %		70 %		70 %		70 %
Shielding Effectiveness		> - 110dB		> - 110dB		> - 110dB		> - 110dB		> - 110dB
