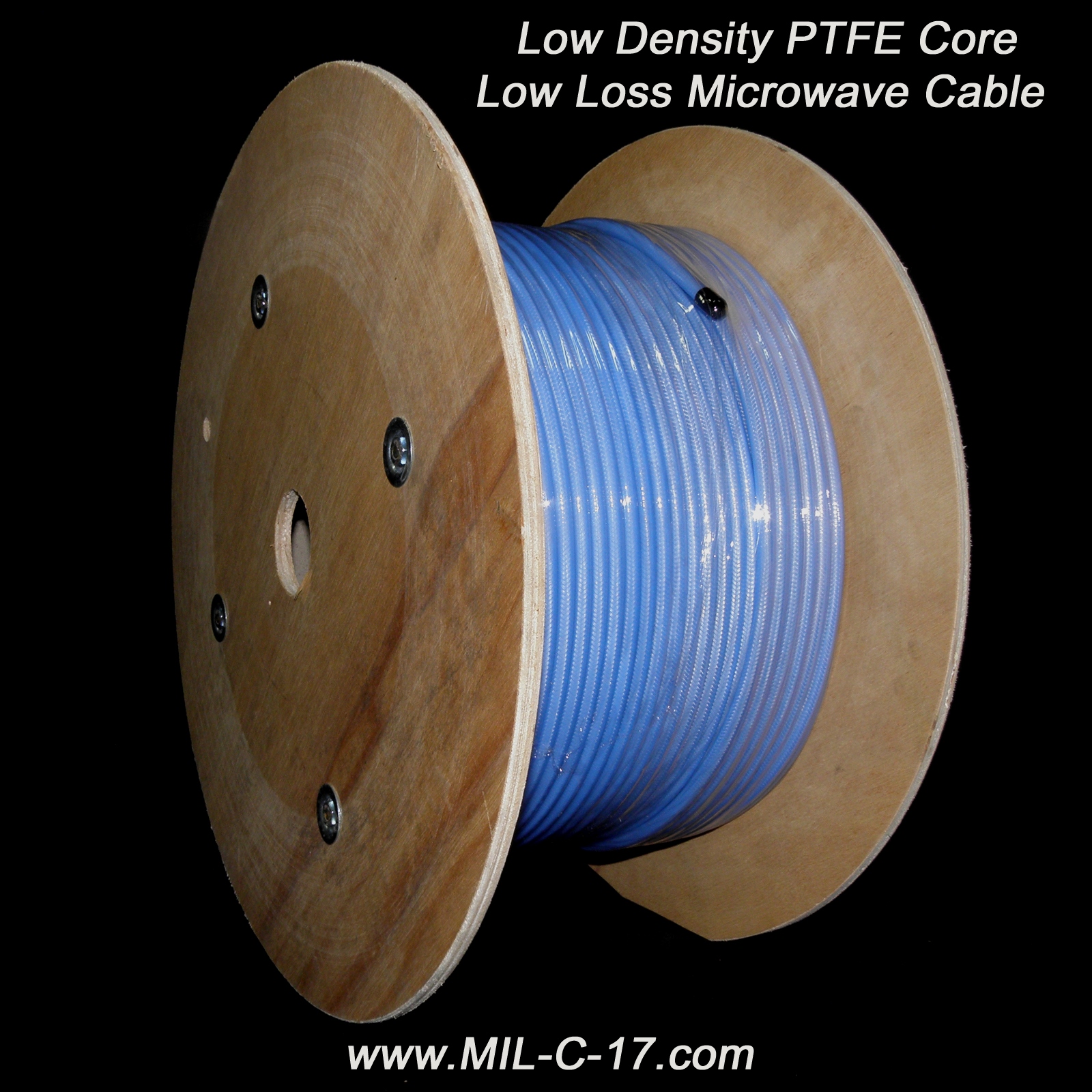

LOW DENSITY EXTRUSION PTFE CORE CABLE ( ULTRA LOW LOSS CABLE )

LLC-MUA210ST, UFA210B, UFB311A, UFA210A, UFB293C, UFB142C, UFB142A, UFB197C, UFB205A, UFB293C, UFA125A, UFA147A, UFA147B, LL120, LL142, LL142STR, LL235, LL393-2, LL335, LL450, LLS120, LLS130, LLS142, LLS142STR, LLS205, LLS290, LLS314


OUTSTANDING ELEMENTS COMPARED WITH EXPANDED PTFE TAPE WRAPPING CORE CABLE


   MORE LONGER CONTINUOUS UNIT LENGTH AVAILABLE
   MORE EASIER CABLE ASSEMBLY WORKS
   MORE HIGHER IMPROVED CABLE ASSEMBLY PRODUCTIVITY
   RESISTANCE TO CRUSHING, KINKING, TWISTING BASED ON HIGHER COMPRESSION RESISTANCE
   EASY AND AUTOMATIC TRIMMING AND STRIPPING BY STANDARD EQUIPMENT AVAILABLE
   - REDUCTION OF CONNECTOR ASSEMBLY PROCESS TIME
   - IMPROVEMENT OF CONNECTOR ASSEMBLY PERFORMANCE
   MORE IMPROVED PHASE NOISE PERFORMANCE
   MORE IMPROVED INSERTION LOSS FINE GRAIN

   REDUCTION OF SIGNAL REFLECTIONS AND NOISE LEVELS BY CONSISTENT,   HOMOGENOUS PHYSICAL STRUCTURES


MECHANICAL CHARACTERISTICS ( ULTRA LOW LOSS CABLE )
Ultra Low Loss Cable Part No.
Replacement for
UFB142A of Micro-Coax
UFB197C of Micro-Coax
UFB205A of Micro-Coax
SemFlex HPI_I90
( 18 ~ 28GHz )
LLS205 ( 18 GHz )
Crystek 190 ( 26.5GHz )
UFB293C of Micro-Coax
UFB311A of Micro-Coax

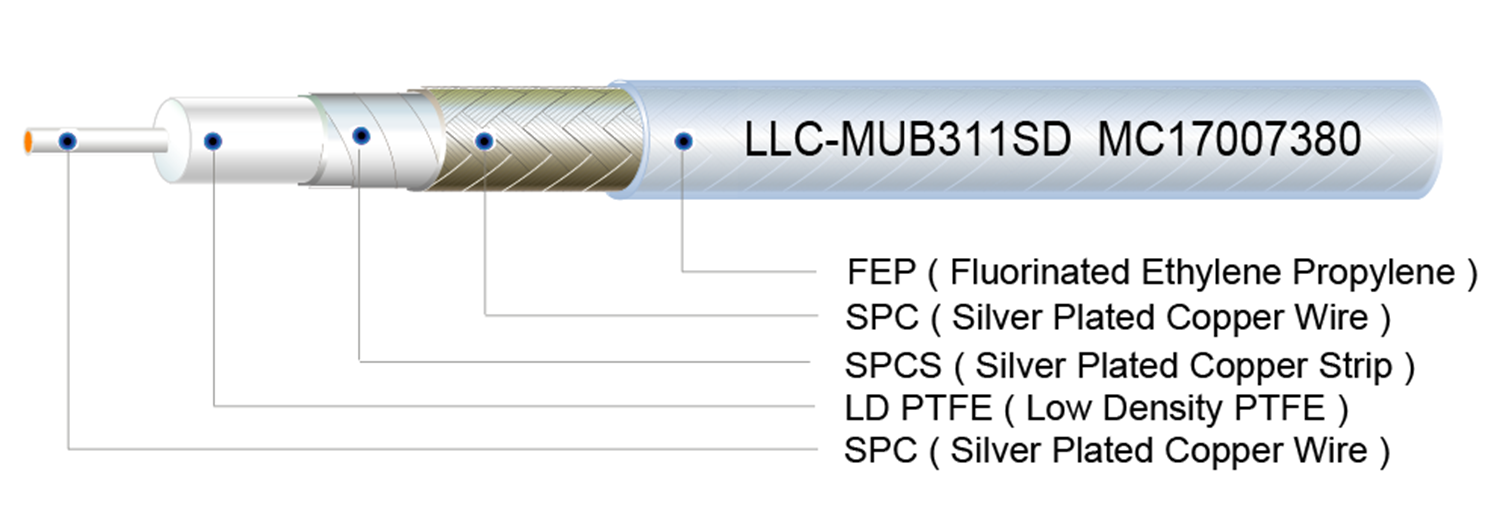

Center Conductor
Silver Plated Copper Wire
Solid
0.0403 inch (1.023mm)
7 Stranded
0.057 inch ( 1.45mm )
Solid
0.0571 inch ( 1.45mm )
7 Stranded
0.089 inch ( 2.26mm )
Solid
0.0907 inch ( 2.30mm)
Dielectric
Low Density PTFE
0.108 inch ( 2.743mm )
0.149 inch ( 3.78mm )
0.157 inch ( 3.99mm )
0.232 inch ( 5.89mm )
0.247 inch ( 6.27mm)
Inner Shield
Silver Plated Copper Strip
0.1165 inch ( 2.959mm)
0.157 inch ( 3.99mm )
0.165 inch ( 4.19mm )
0.242 inch( 6.15mm )
0.254 inch ( 6.45mm )
Outer Shield
Round Silver Plated Copper Wire
0.130 inch ( 3.302mm )
0.174 inch ( 4.42mm )
0.174 inch ( 4.42mm )
0.269 inch ( 6.83mm )
0.284 inch ( 7.21mm )
Jacket
FEP
( Fluorinated Ethylene Propylene )
0.142 inch ± 0.005 inch
( 3.61mm ± 0.13mm)
0.197 inch ± 0.005 inch
( 5.00mm ± 0.13mm )
0.205 inch ± 0.005 inch
( 5.21mm ± 0.13mm )
0.293 inch ± 0.004 inch
( 7.44mm ± 0.10mm )
0.311 inch ± 0.004 inch
( 7.90 ± 0.10mm )
Jacket Wall Thickness
> 0.012 inch ( > 0.31 mm )
> 0.012 inch ( > 0.31 mm )
> 0.010 inch ( > 0.25 mm )
> 0.012 inch ( > 0.31 mm )
> 0.012 inch ( > 0.31 mm )
Weight
Grams/ft ( Grams / Meter )
10g/ft (32.8g/m)
18g/ft (59.1g/m)
20g/ft (65.6g/m)
37g/ft (121.4g/m)
42g/ft (137.8g/m)
Minimum Bend Radius
inch ( mm )
0.38inch (9.65mm)
0.50inch (12.70mm
0.50inch (12.70mm
0.75inch (19.05mm
1.25inch (31.75mm)
Flexures
5,000
35,000
5,000
35,000
5,000
ELECTRICAL CHARACTERISTICS
Impedance
Ohms
50 Ohms
50 Ohms
50 Ohms
50 Ohms
Frequency Range
GHz
DC-40 GHz
DC-26.5 GHz
DC-26.5 GHz
DC-18 GHz
DC-18 GHz
Velocity of Propagation
%
83%
83%
83%
83%
83%
Capacitance
pf/ft ( pf/m )
24.5pf/ft (80.4pf/m )
24.5pf/ft (80.4pf/m )
24.5pf/ft (80.4pf/m)
24.5pf/ft (80.4pf/m)
24.5pf/ft (80.4pf/m)
dB @ 1 GHz
> -100 dB
> -100 dB
> -100 dB
> -100 dB
> -100 dB
> -100 dB
Power Handling watts
(CW) @ 10 GHz
172
281
328
540
643
